GF-C Series

Cabinet LED Screen

Ultra slim led cabinet with thickness 27.5mm, super light weight 4KG/per panel, compatible with different pixel pitch, stable data transmission with a new connector. Choose Glind for your indoor led display supplier!

Indoor LED Display

Small Pixel Pitch LED Screen

Deliver an eye-catching viewing experience with the Glind's fine-pixel-pitch displays. Combining our leading video processing technologies with the refresh rates of 1920/2880/3840 Hz, our LED screen panel delivers clear, high-quality content within a compact, easy-to-maintain design.

Contact Us

Perfect Display Effect

The 160° super-wide horizontal and vertical viewing angle brings more potential clients. Our standard LED screen provides stable broadcast images without the scanning line, and the image edge is sharp and clear when dealing with dynamic images.

Stable Operation

• Safety        •Stable signal for transmission        •Centrally power management

Image Quality

Brightness from 0-800 nits is adjustable, with high grayscale and more color depth. Under 100 nits, the colors in our standard led screen will be twice as rich as the colors in competitors’ screens.

Image Processing

Broadcasting is a unique industry where high standards for a signal and image are required. Glind has an abundance of experience relevant to TV studio projects; please refer to the project images.

High-Resolution Display

Only 4kg for each panel

2.8KG for each LED screen panel.

Support for gap minitrim

The high precise mechanism could eliminate dark or bright lines between panels effectively and cause no worry of assembly effeciency for the engineers any more.

Why Choose Glind LED Screen

Precise Technology

Precise Technology

CNC machines are used for cabinet and workshop in the industry. Therefore, each LED screen panel could be guaranteed to adopt qualified mold processing to reduce the error in an infinite approach to zero.

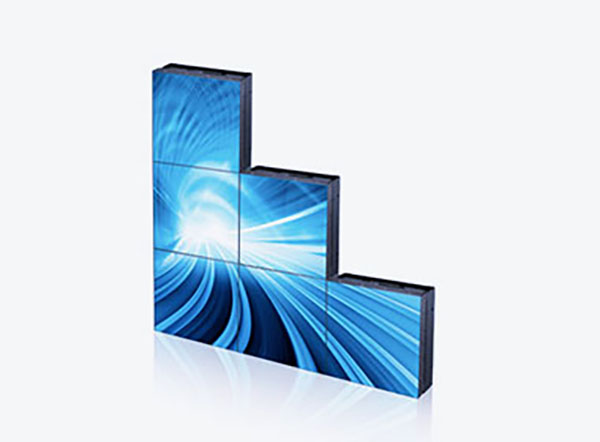

Low Cost of Splicing

Low Cost of Splicing

With a perfect panel ratio of 16:9, Glind HD LED display could be easily spliced in consistent with frequently-used video proportion of 4:3 or 16:9, which could greatly reduce the splicing cost under the dual conditions of prescribed signal source and certain scene.





Support for the Front Installation and Maintenance

Support for the Front Installation and Maintenance

Module, power supply, receiving card, and cables between the panels could all be accessed and maintained from the front. Additionally, a specially-designed LED screen panel could be installed from the front as well, which makes it more adaptive to the condition with limited space.

Reliable Data and Power Management

The external sending controller and internal receiving ones, even the back-up system available if needed, ensuring safe and reliable connections between the tiles.



Remote power supply system, specially designed for our solutions, could be located up to max 10meters from the screen.

Multiple Installation Modes

Specifcations
  Model GF-C-0.937 GF-C 1.25 GF-C 1.56 GF-C 1.875
  Pixel Pitch 0.937mm 1.25 mm 1.56 mm 1.875 mm
  Pixel Configuration Four-in-one Gold Wire SMD1010 SMD1010 SMD1515
  Pixel Density(pixels/m²) 1,137,777 640,000 409,800l 284,444
  Module Size(mm) 150x168.75 150x168.75 150x168.75 150x168.75
  Module Resolution 160x180dot 160x180dot 96x108dot 80x90dot
  Cabinet Size(mm) 600x337.5 600x337.5 600x337.5 600x337.5
 Cabinet Resolution 640x360dot 480×270dot 384x216dot 320×180
 Gray Scale 16bit 16 bit 16 bit 16 bit
 Max Power Consumption 800W/m²
 Average Power Consumption 260W/m²
  Operating Temp/Humidity -20℃-60℃
  Storage Temp/Humidity -30 - 60℃/10% - 60%
  Brightness 600 - 800 nits
  Viewing Angle 140°/140°
  Expected LED Lifetime (Max) 100,000 Hrs
 Maintenance Front Service

Product Testings

Screen Aging Testing - 72 Hours

Color Calibration
